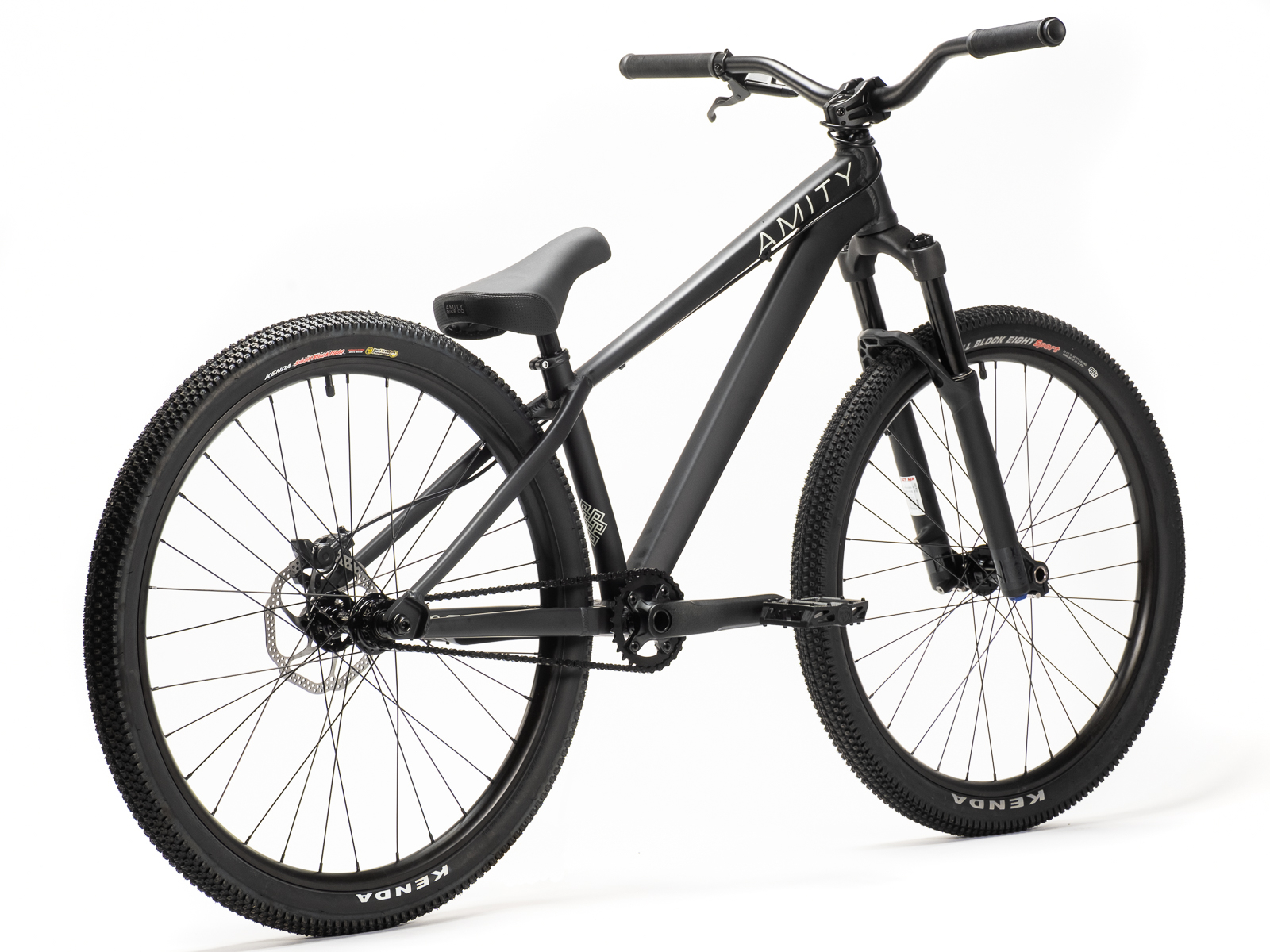

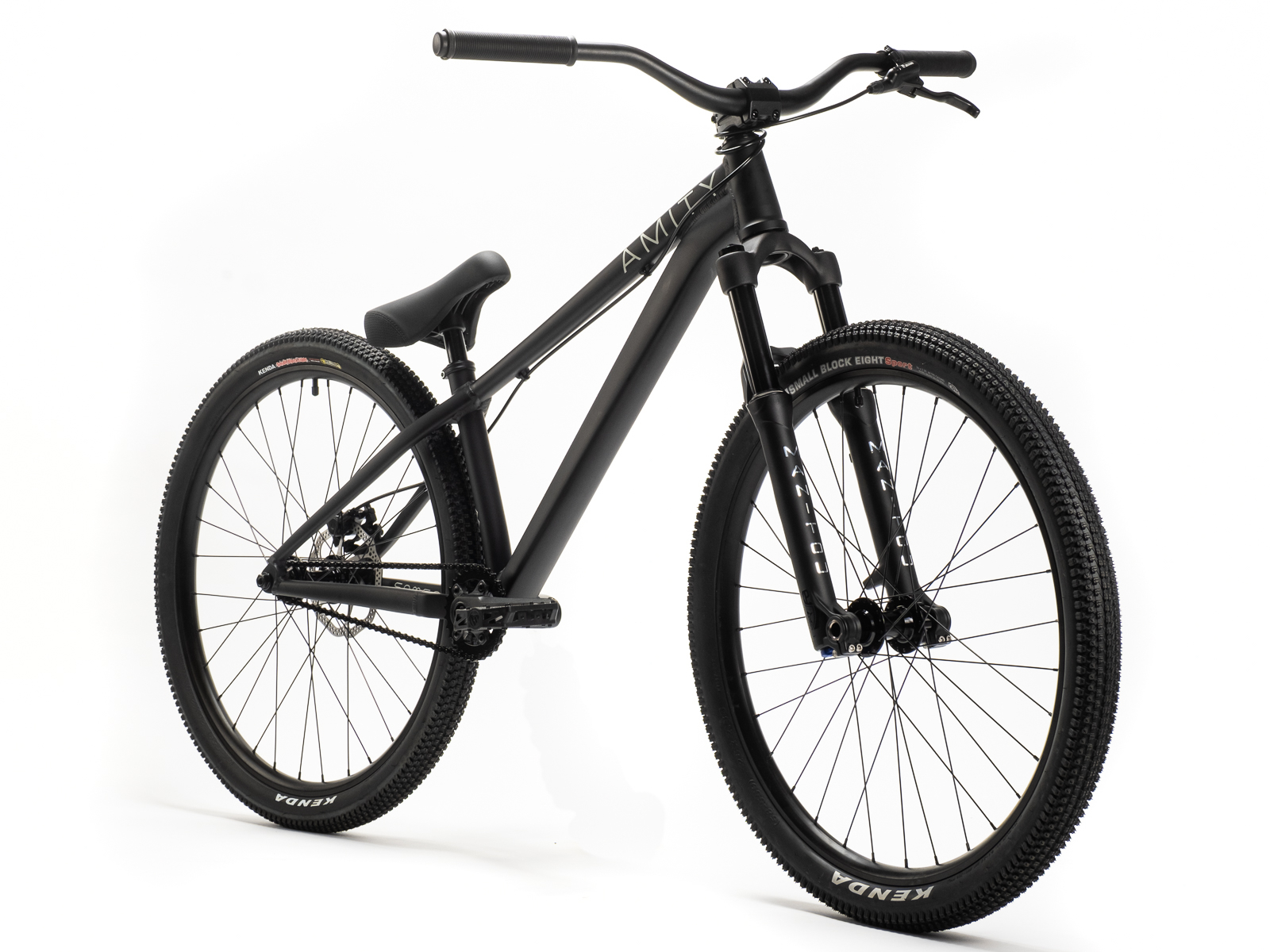

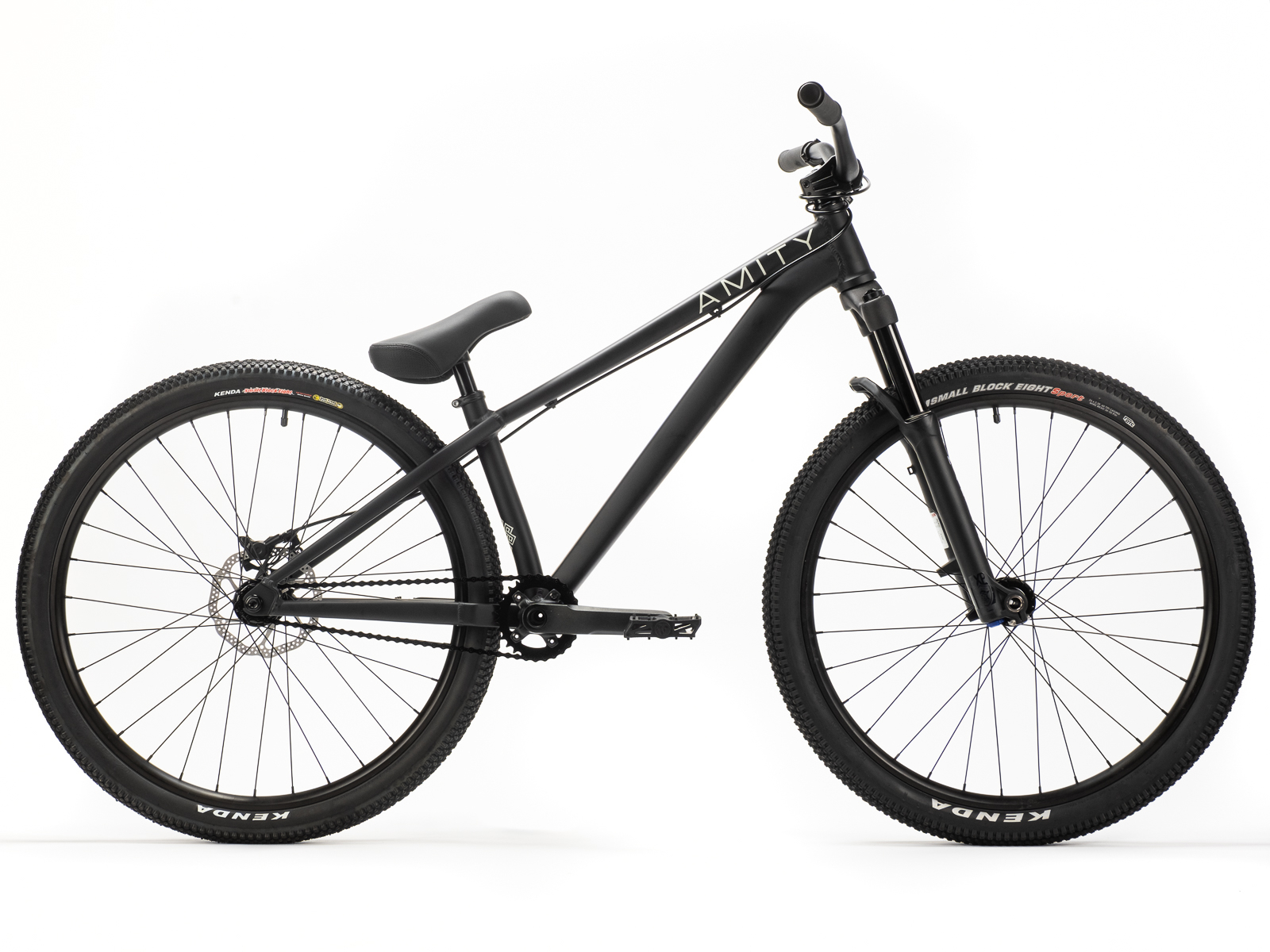

Amity Samsara Black

SKU
AMITYSBLACK

€949.00
-
+
Overview

The Samsara has been designed to hit the biggest dirt jumps and trails with a refined geometry to compliment your riding style. Bespoke hydroformed tubes ensure we have 100% say in how the frame is constructed allowing us to get the most out of the bike in terms of form and function.

More Information
Geometry
(A) Top tube length 561mm
(B) Chainstay length 385mm
(C) Head angle 69°
(E) Seat tube angle 70.5°
(F) Standover 710mm
(G) Reach 400mm
(H) Stack height 563mm
(J) Fork offset 41mm
Specs
Frame Samsara
Forks Manitu Circus Expert 100mm
Handlebars Pro Jump 1 W762mm X H62mm
Grips Classic mushroom grip 160mm
Headset 1 1/8” -1.5" Tapered - Integrated - Sealed bearings

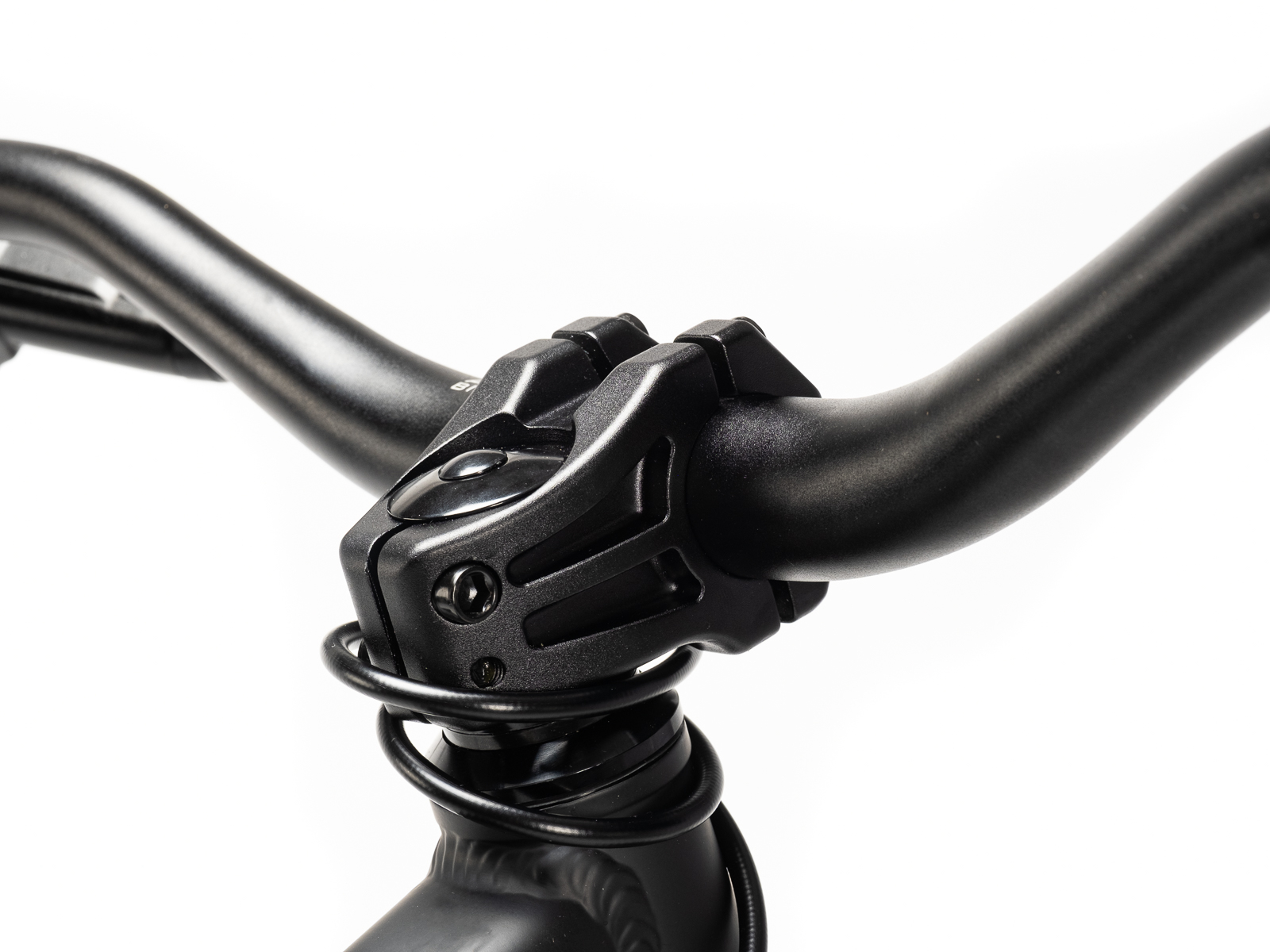

Stem Forged Frontload - Ø31.8
Pedals 9/16” Plastic

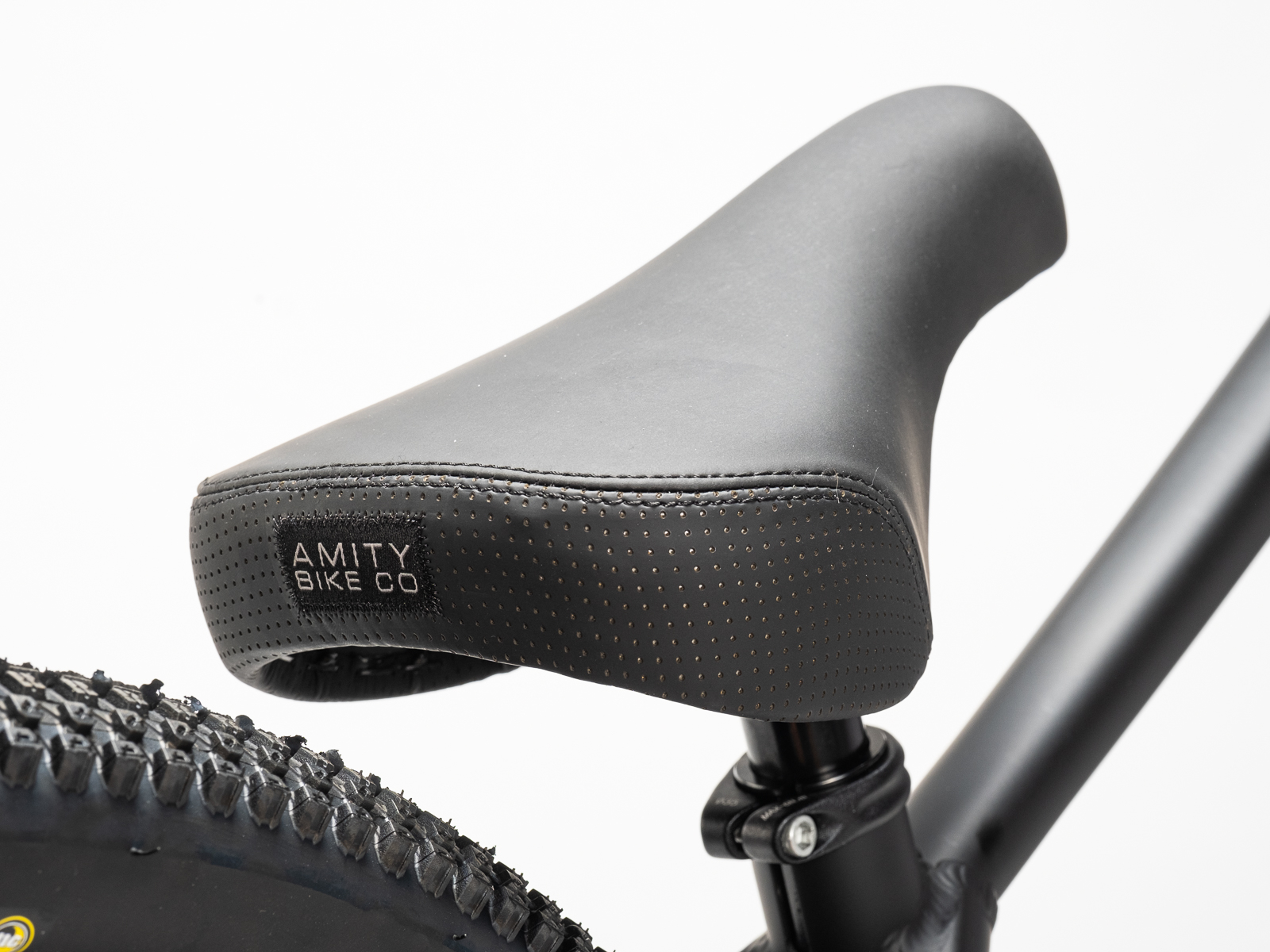

Saddle Amity 1 Piece mid integrated alloy post - Ø25.4
Seatpost Ø25.4mm integrated with seat
Seat Clamp Ø35mm External

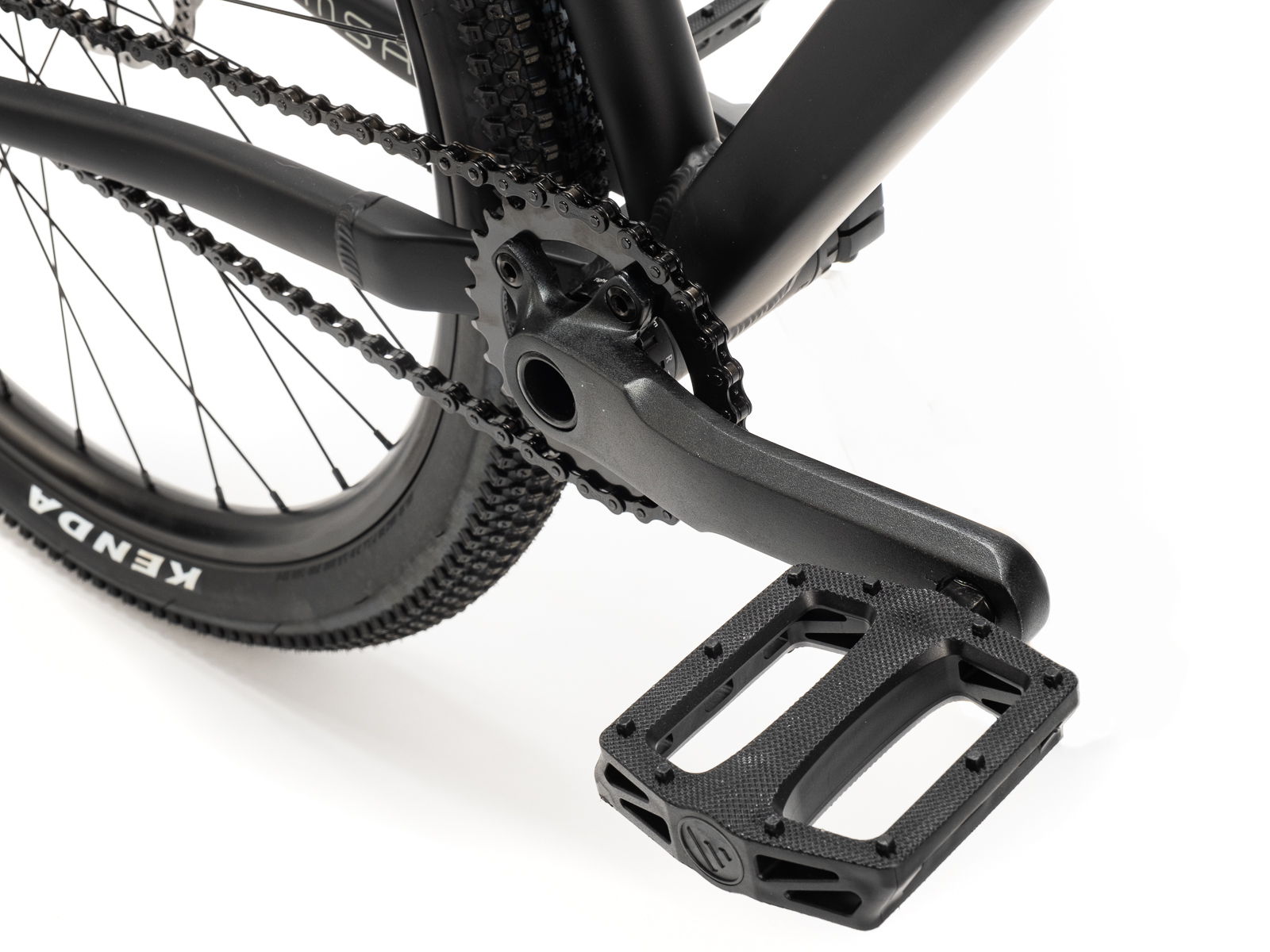

Cranks 170mm forged 4 bolt Ø76 BCD alloy cranks with 24mm hollow spindle
Chainring/sprocket front 28t 76bcd Steel Sprocket
Sprocket/cassette rear 11t Fully sealed Cassette
Tyre Front Kenda Small Block Eight 26" x 2.35"
Tyre Rear Kenda Small Block Eight 26" x 2.1"

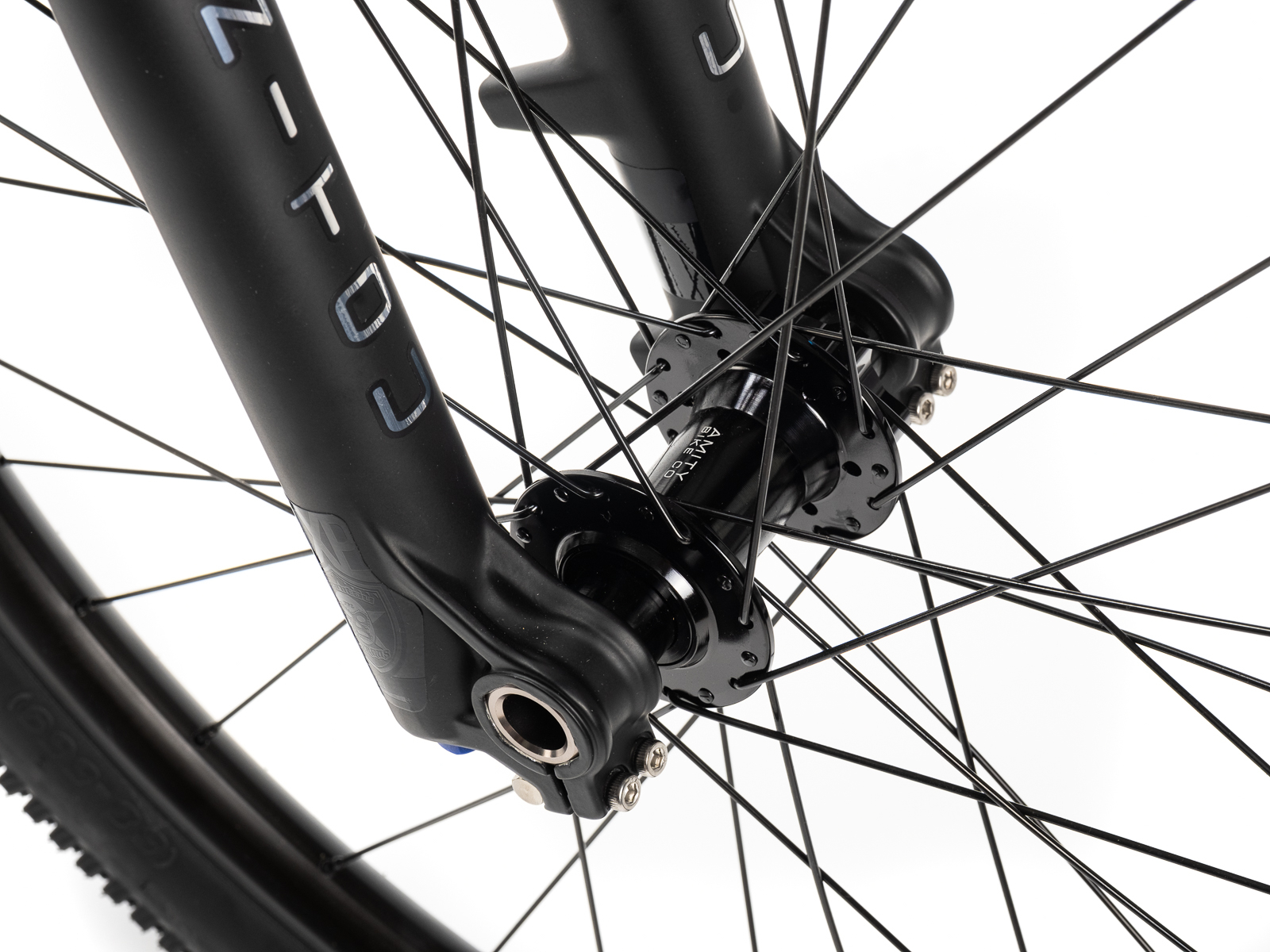

Front hub 20mm x 110mm, sealed bearings, Disc

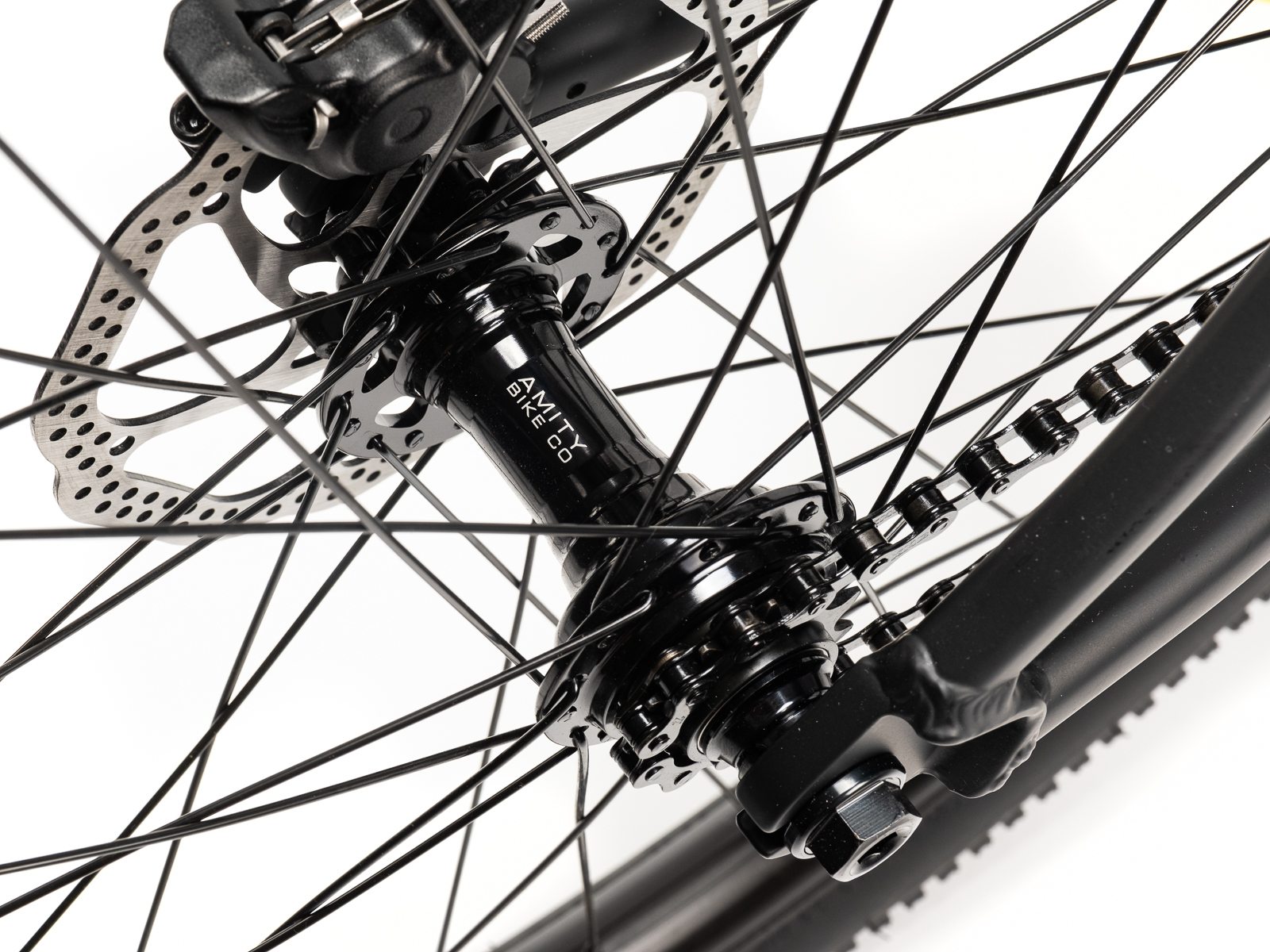

Rear hub Alloy shell, 10x135mm Female axle, Disc
Rim front 26" Double wall alloy 32h
Rim rear 26" Double wall alloy 32h
Brake Front Mechanical disc brake 160mm rotor (supplied in roadkit)

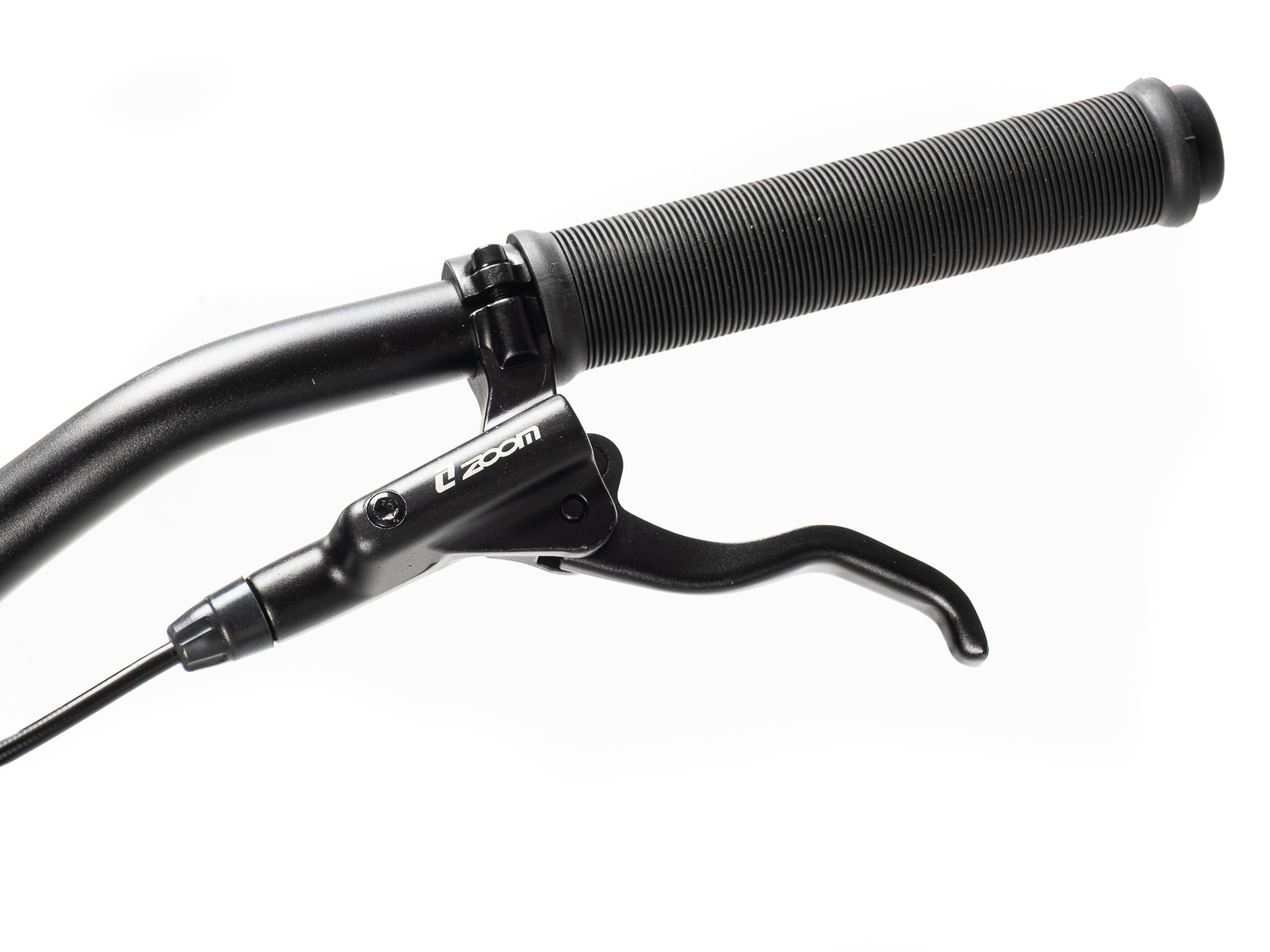

Brake Rear Zoom - hydraulic disc brake 160mm rotor
Tech
Weight (lbs) 30.200000
Frame weight 2.0Kg
BB type 73mm ISO Euro (19mm)
Headset type 1 1/8” -1.5" tapered integrated
Max tyre width rear 66mm / 2.6"
Seatpost/seatclamp Ø25.4mm post with Ø31.8 shim, Ø35 seatclamp
Front axle/hub spacing 20 x 110 Thru axle
Frame construction and details 6061 T6 Alloy .Forged dropouts .Integrated chain tensioners .CNC headtube .IS Disk mount .Bespoke Hydroformed tubes .ISO Threaded BB
Fork construction Tapered steerer, Air, Rebound, Compression
Road kit Included

The Samsara has been designed to hit the biggest dirt jumps and trails with a refined geometry to compliment your riding style. Bespoke hydroformed tubes ensure we have 100% say in how the frame is constructed allowing us to get the most out of the bike in terms of form and function. After almost 2 years in development and multiple prototype’s, the geometry has been fine tuned for what we feel is the perfect jump bike.

A short back end, low standover, planted bb height and a saddled cockpit makes the Samsara not only looks awesome, but rides with the utmost control, allowing you to cork 3’s and whip the back end with ease. The hydraulic rear brake is firm and responsive, and the Kenda Small Bock 8 tyres are fast rolling and grippy without feeling sluggish. The Samsara is a pro level jump bike that will see riders from beginner all the way up riding some of the worlds gnarliest dirt jumps.
